SWITCH DLINK | |
---|---|
Standard | • IEEE 802.3i 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3x Flow Control • ANSI/IEEE 802.3 NWay auto-negotiation • PCI local bus 2.3 specifications |
Protocol | • CSMA/CD |
Data Transfer Rates | • 100BASE-TX: • Half-duplex: 100 Mbps • Full-duplex: 200 Mbps • 10BASE-T: • Half-duplex: 10 Mbps • Full-duplex: 20 Mbps |
Network Cables | • 10BASE-T: 2-pair STP/UTP Cat. 3, 4, 5 (max. 100 m) EIA/ TIA-568 100 ohm (max. 100 m) • 100BASE-TX: 2-pair STP/UTP Cat. 5 (max. 100 m) EIA/ TIA-568 100 ohm (max. 100 m) |
LED Indicators | • 100M (speed) • LINK/ACT |
Power Consumption | • Max: 0.37 W |
DIMENSIONS (L X W X H) | • 120 x 20 mm (4.72 x 0.79 inches) |
Thông số kỹ thuật
Mô tả sản phẩm

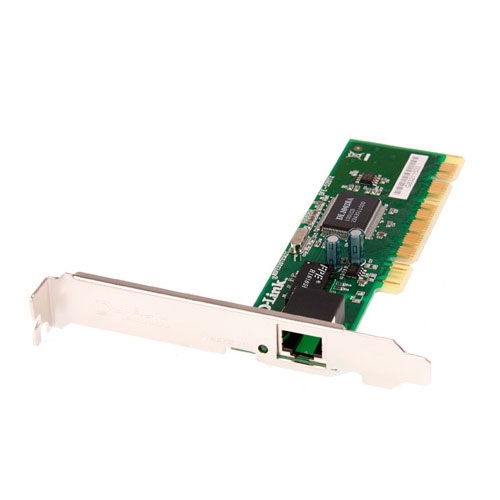

PCI Bus Master Performance
Plugged into your PC's PCI expansion bus, this network card is automatically configured by the PC BIOS. Supporting 32-bit Bus Master operation, the card provides a guaranteed performance for your networked PC.
10/100 Mbps Connection
The card's single RJ-45 supports both 10BASE-T Ethernet and 100BASE-TX Fast Ethernet. 10/100 Mbps speeds are automatically negotiated, completely without your need to intervene.
802.3x Flow Control
In the fast 200 Mbps full-duplex mode, the card's embedded flow control provides a means to prevent data loss during transmission on the network. When connected to a LAN switch that supports flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods.
