SWITCH DLINK | |
---|---|
Standard | - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - ANSI/IEEE 802.3 NWay auto-negotiation - PCI local bus 2.3 specifications - IEEE 802.3x Flow Control - IEEE 802.1Q VLAN Tagging - IEEE 802.1P Priority Queues |
Protocol | CSMA/CD |
Data Transfer Rates | - Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) - Gigabit Ethernet: 2000Mbps (full duplex) |
Network Cables | - 10BASE-T: UTP Cat. 3, 4, 5 (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) - 100BASE-TX, 1000BASE-T: UTP Cat. 5 (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) |
LED Indicators | - 1000/100/10Mbps - Full duplex |
Thông số kỹ thuật
Mô tả sản phẩm
Remote Management

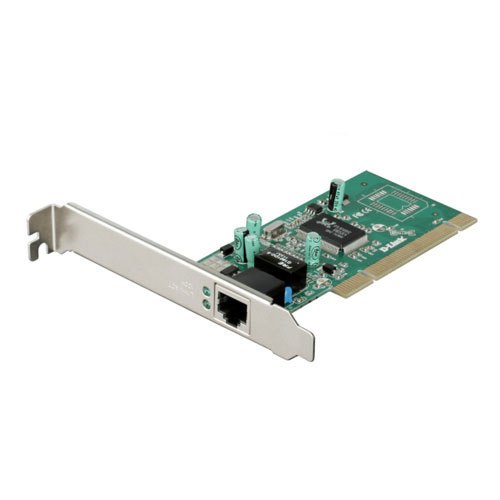

The DGE-528T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.
Versatility
The DGE-528T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying troubleshooting.
