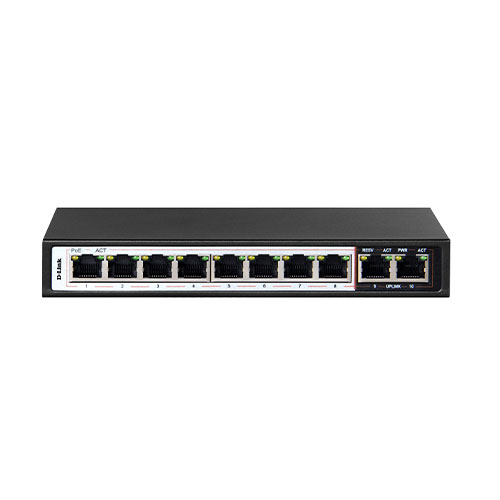

| SWITCH DLINK | |
|---|---|
| NUMBER OF PORTS | • 8 10/100 BASE-T ports PoE • 2 10/100 BASE-T Uplink ports |
| SWITCHING FABRIC | • 2Gbps |
| Standard | • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x ow control |
| Data Transfer Rates | • Fast Ethernet • 100 Mbps • Ethernet • 10 Mbps |
| Media Interface Exchange | • Auto MDI/MDI-X adjustment on all ports |
| LED Indicators | Power Link/Activity |
| Transmission Method | • Adopt Store-and-forward |
| Packet Filtering/Forwarding Rates (half duplex) | • 10M port maximum 14800pps • 100M port maximum 148800pps |
| Power Consumption | • External power adapter: 96W |
| DIMENSIONS (L X W X H) | • 184 x 75 x 27 mm |
| Weight | • 0.95kg |
Thông số kỹ thuật
Mô tả sản phẩm
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc.
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DES-F1010P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution.
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position.
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance.
Enhanced with Video QoS
Improve the Video Packet Priority Create high priority for video streaming, perfect solution for IP camera/CCTV.
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery.
