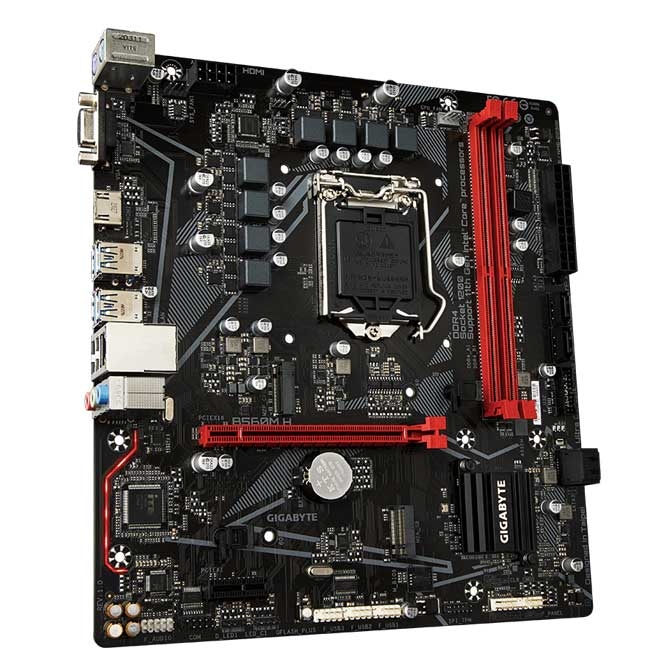

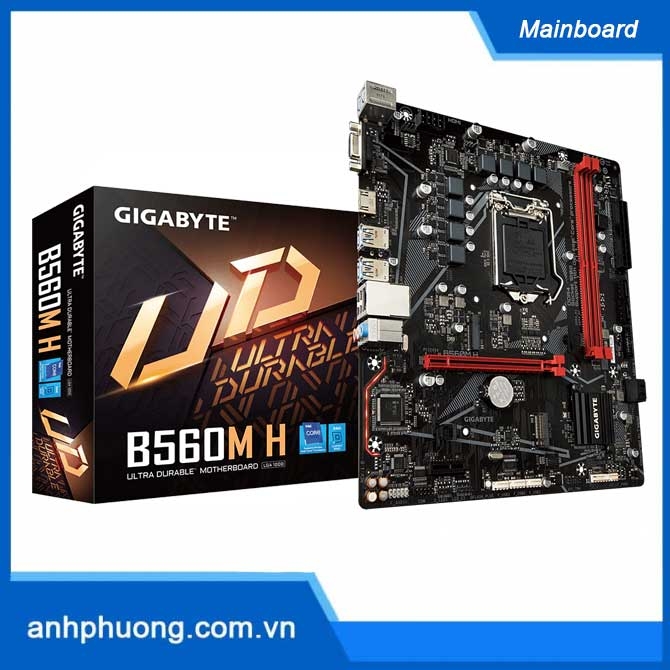

Mainboard Gigabyte B560M H

  • Chưa có đánh giá nào
  • 2018 lượt xem
  • Mã sản phẩm : B560M H
  • Thương hiệu : GIGABYTE
  • 2.450.000₫ [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ
Mua ngay Thêm vào giỏ hàng
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Download Driver: download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí:  093.955.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
Chipset Intel® B560 Express Chipset
Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphic 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
1 x PCI Express x1 slot (PCIEX1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
4 x SATA 6Gb/s connectors
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
Lan Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channe
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
USB Port Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Operating System Support Support for Windows 10 64-bit
Back I/O Ports 1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
