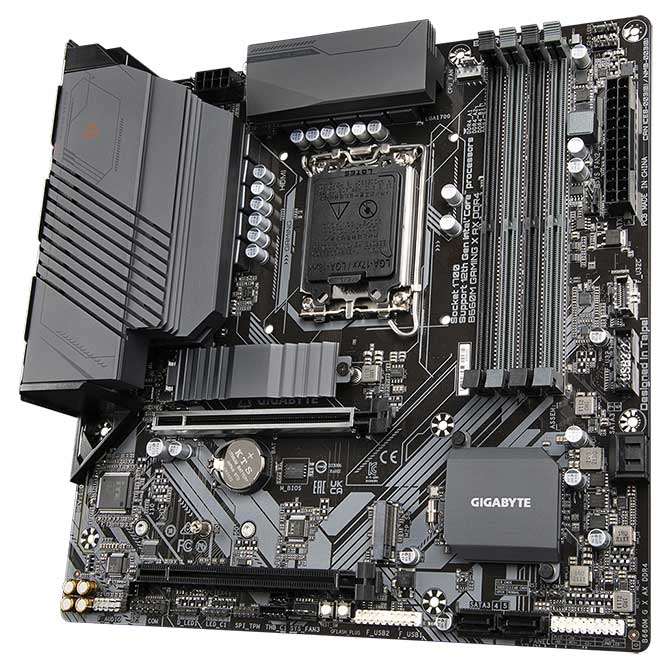

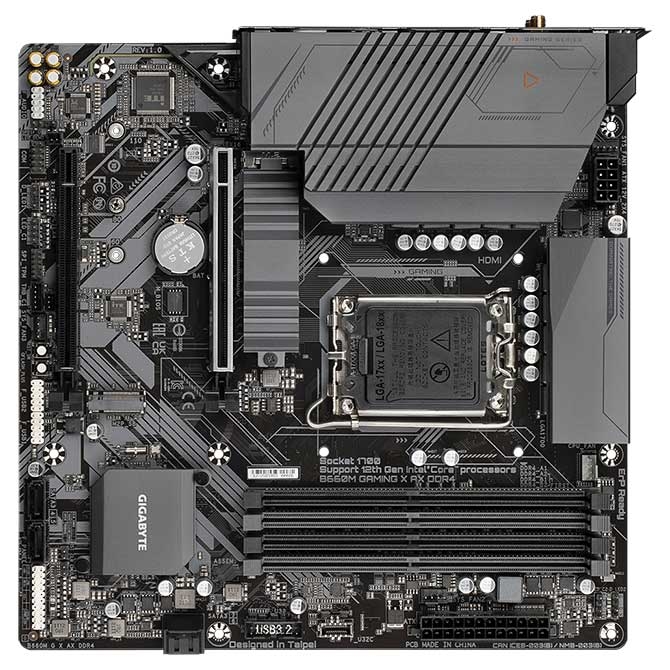

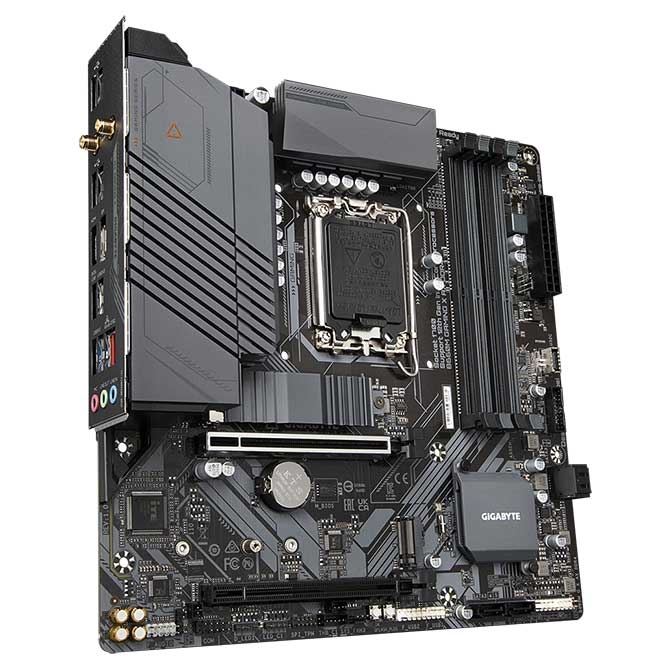

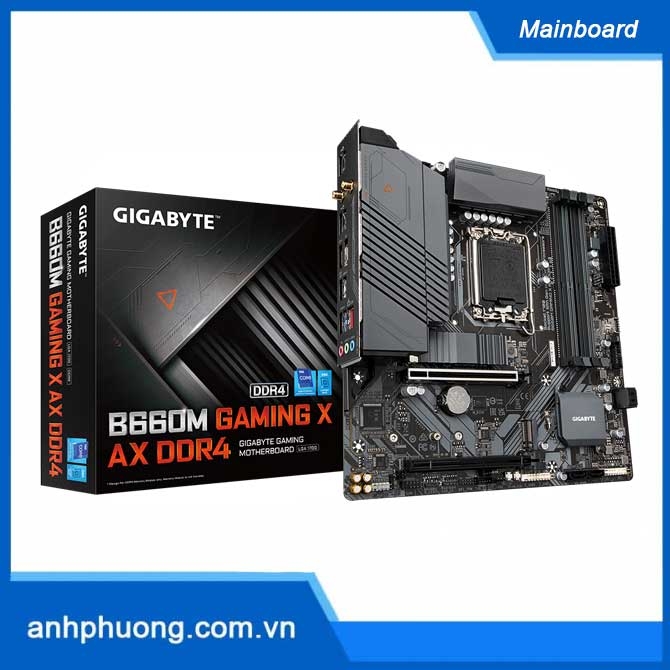

Mainboard Gigabyte B660M GAMING X AX DDR4

  • Chưa có đánh giá nào
  • 2687 lượt xem
  • Mã sản phẩm : B660M GAMING X AX DDR4
  • Thương hiệu : GIGABYTE
  • 4.700.000₫ [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ
Mua ngay Thêm vào giỏ hàng
  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*​​
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks​
  • WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections​
  • Pre-installed IO Shield for easy and quick installation​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Download Driver: download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí:  093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® B660 Express Chipset
Memory Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphic 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Multi Graphic Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lan 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 6 AX200 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
USB Port Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Back I/O Ports 3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.1 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
