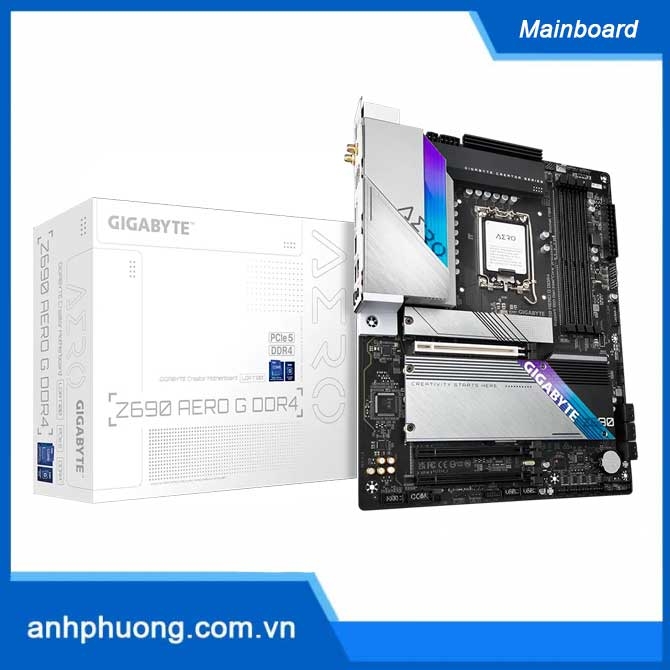

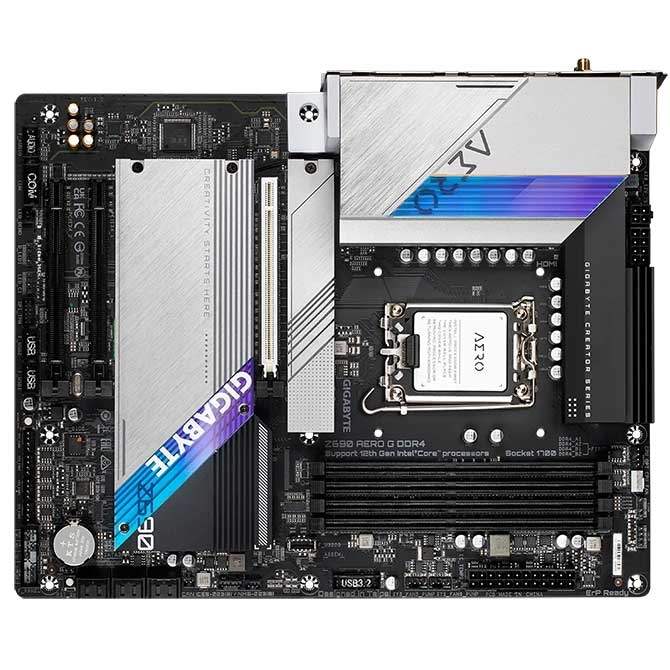

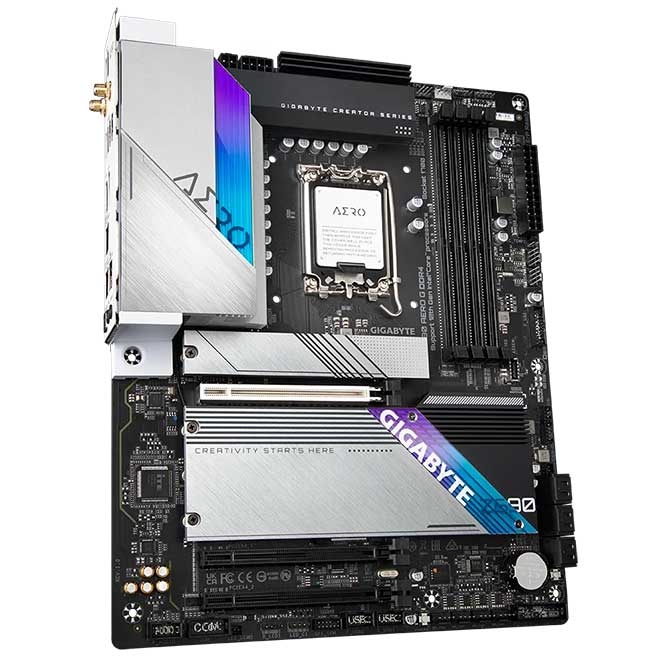

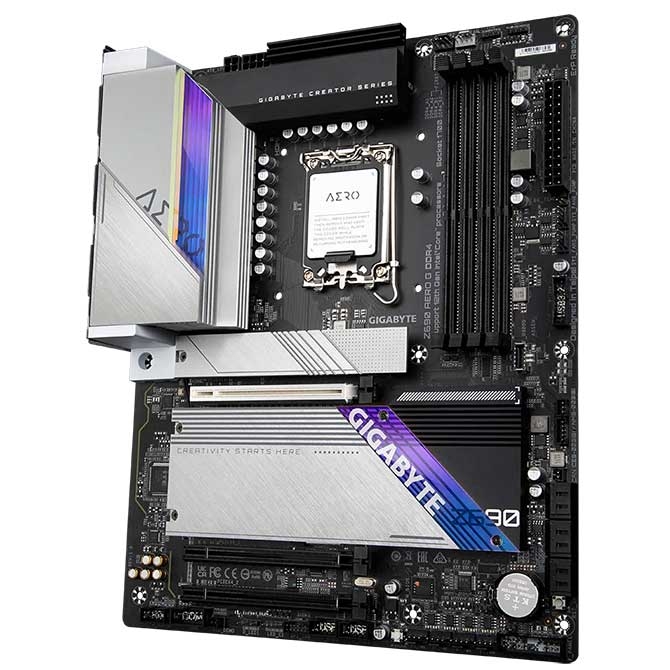

Mainboard Gigabyte Z690 AERO G DDR4

  • Chưa có đánh giá nào
  • 1843 lượt xem
  • Mã sản phẩm : Z690 AERO G DDR4
  • Thương hiệu : GIGABYTE
  • 8.400.000₫ [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ
Mua ngay Thêm vào giỏ hàng
  • Supports 12th Gen Intel® Core™ Series Processors​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
  • Go further without more cables by VisionLINK I/O design
  • Brings a speed network experience with Intel® 2.5GbE LAN
  • WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
  • No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
  • 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
  • Advanced thermal architecture design for the better thermal dissipation
  • Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Download Driver: download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí:  093.955.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® Z690 Express Chipset
Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphic 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Multi Graphic Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lan Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Audio Realtek® ALC4080 CODEC
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
USB Port Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit

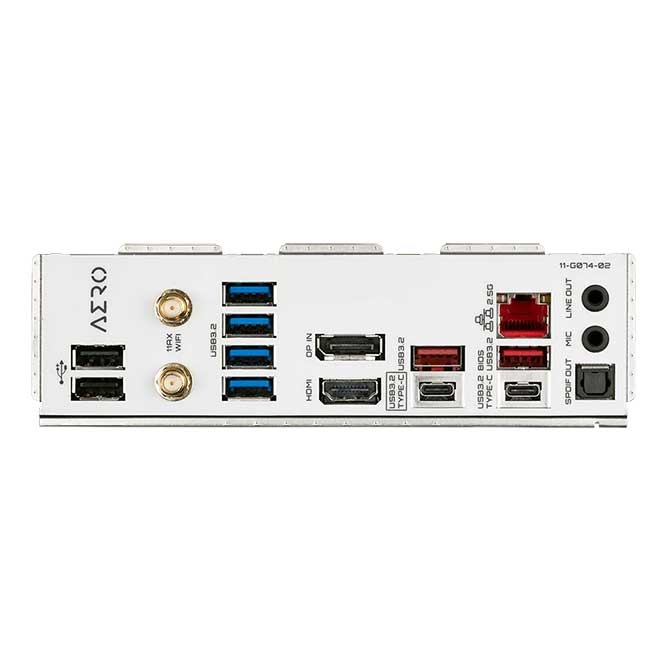

Back I/O Ports 2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
