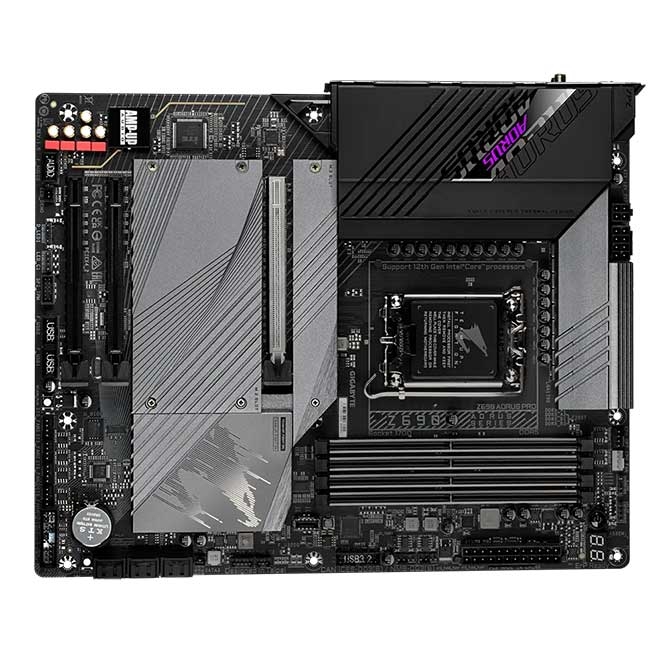

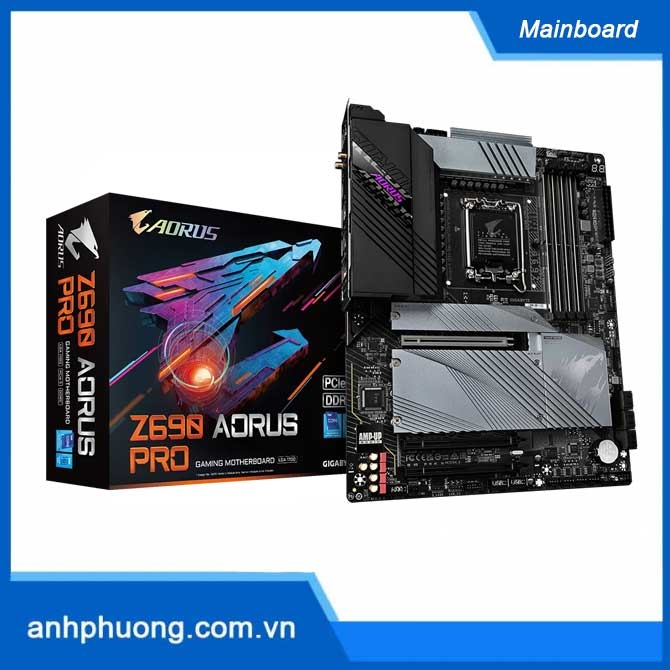

Mainboard Gigabyte Z690 AORUS PRO

Chưa có đánh giá nào
1638 lượt xem

Mã sản phẩm : Z690 AORUS PRO
Thương hiệu : GIGABYTE

8.990.000^₫ [Đã bao gồm VAT]

Số lượng
Liên hệ

Mua ngay Thêm vào giỏ hàng

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Intel^® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Download Driver:

Cam kết hàng chính hãng
Cam kết hàng nguyên tem, nguyên kiện, mới 100%
Bảo hành theo tiêu chuẩn NSX
Giao hàng toàn quốc
Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí: 093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU	LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
Chipset	Intel® Z690 Express Chipset
Memory	Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphic	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Multi Graphic	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lan	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network	WIFI Module WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Audio	Realtek® ALC4080 CODEC High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
USB Port	Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Operating System Support	Support for Windows 11 64-bit Support for Windows 10 64-bit

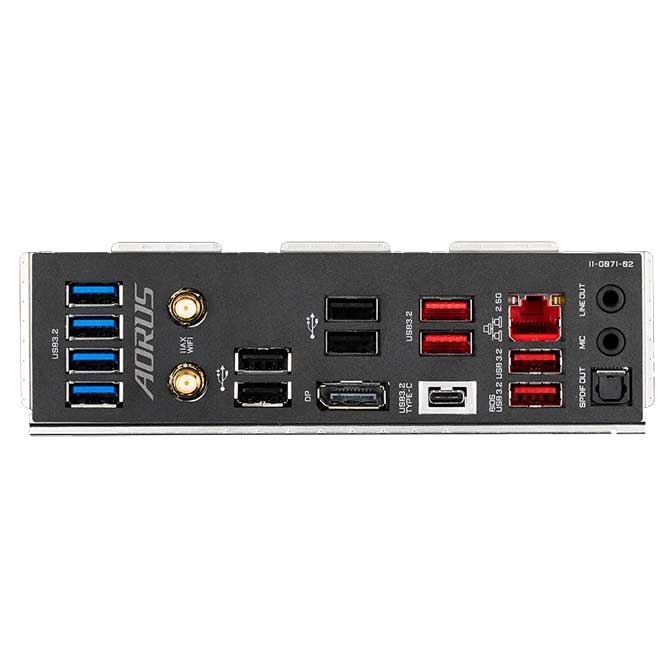

Back I/O Ports	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
