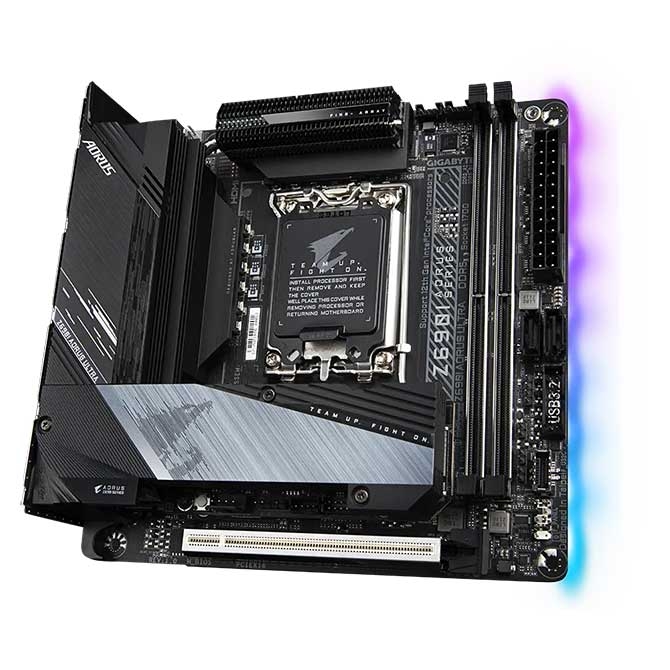

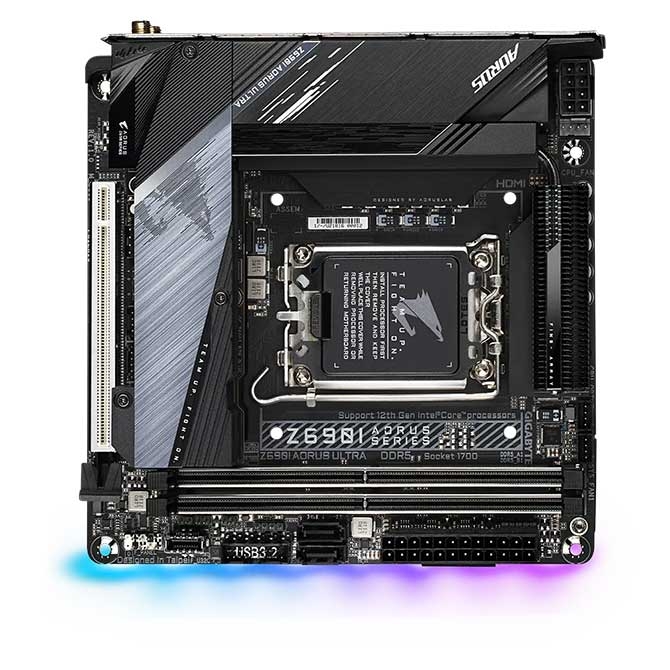

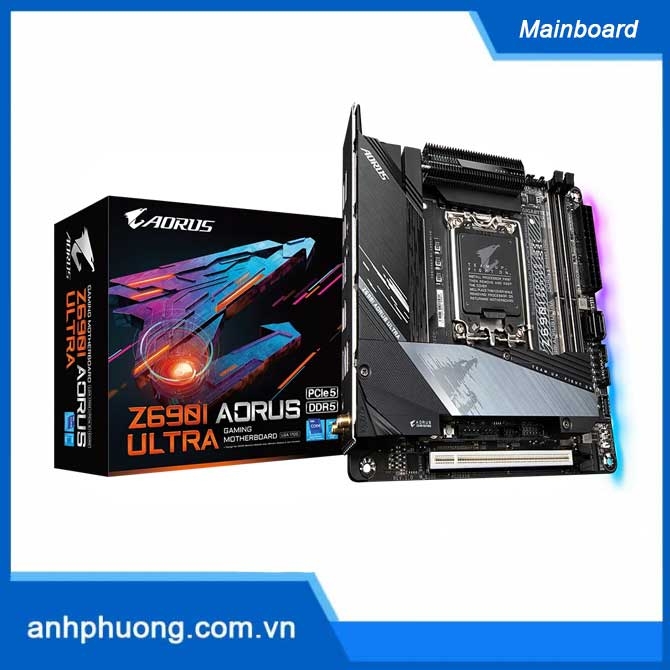

Mainboard Gigabyte Z690I AORUS ULTRA

  • Chưa có đánh giá nào
  • 1686 lượt xem
  • Mã sản phẩm : Z690I AORUS ULTRA
  • Thương hiệu : GIGABYTE
  • 8.650.000₫ [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ
Mua ngay Thêm vào giỏ hàng
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Intel® Optane™ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins- Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Download Driver: download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí:  093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® Z690 Express Chipset
Memory Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphic Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
* Support for DisplayPort 1.4 version and HDCP 2.3
* The DisplayPort does not support HDMI connection by adapter.
(Graphics specifications may vary depending on CPU support.)
Expansion Slots 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slots conform to PCI Express 5.0 standard.)
Storage CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lan Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 6 AX201:
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Audio Realtek® ALC4080 CODEC
Support for DTS:X® Ultra
High Definition Audio
2-channel
USB Port Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Back I/O Ports 2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x external power connector(Note 1)
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
1 x addressable LED strip header(Note 1)
1 x RGB LED strip header
2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header(routed from the adapter card on the rear panel)
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header(Note 1)
1 x reset button(Note 1)
1 x reset jumper
1 x Clear CMOS jumper
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
