Mainboard MSI MAG B660M MORTAR

Chưa có đánh giá nào
798 lượt xem

Mã sản phẩm : MAG B660M MORTAR
Thương hiệu : MSI

5.030.000^₫ [Đã bao gồm VAT]

Số lượng
Liên hệ

Mua ngay Thêm vào giỏ hàng

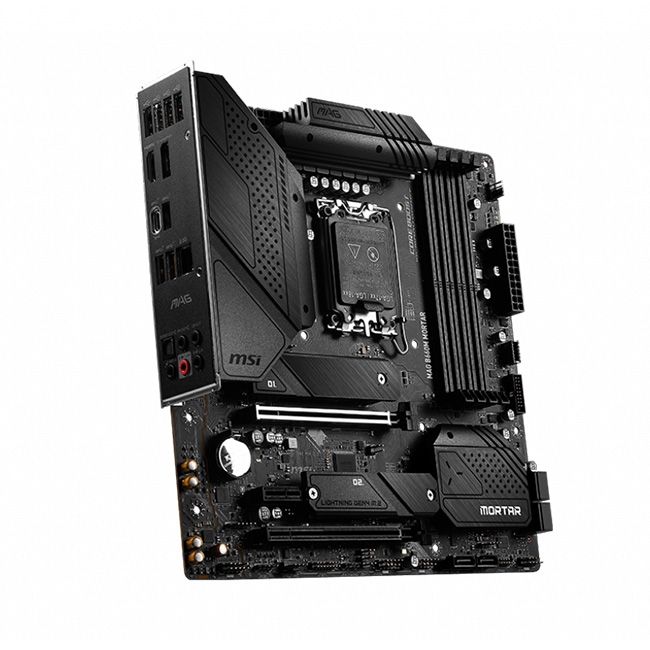

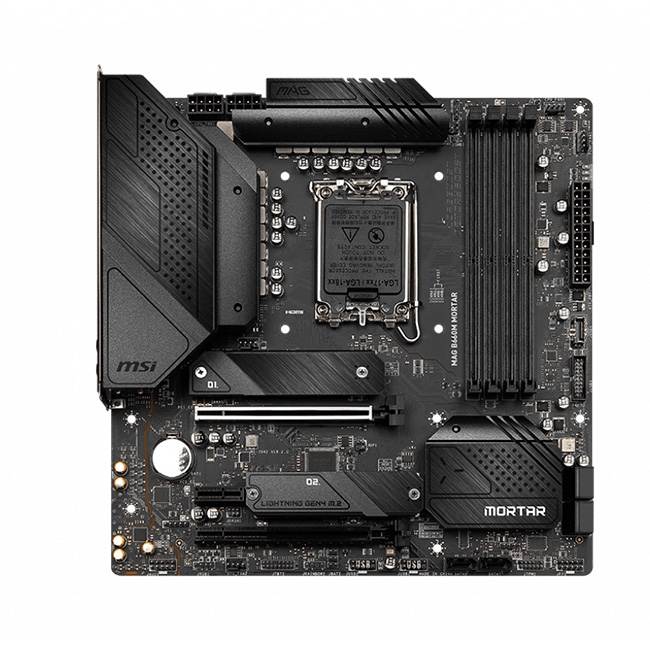

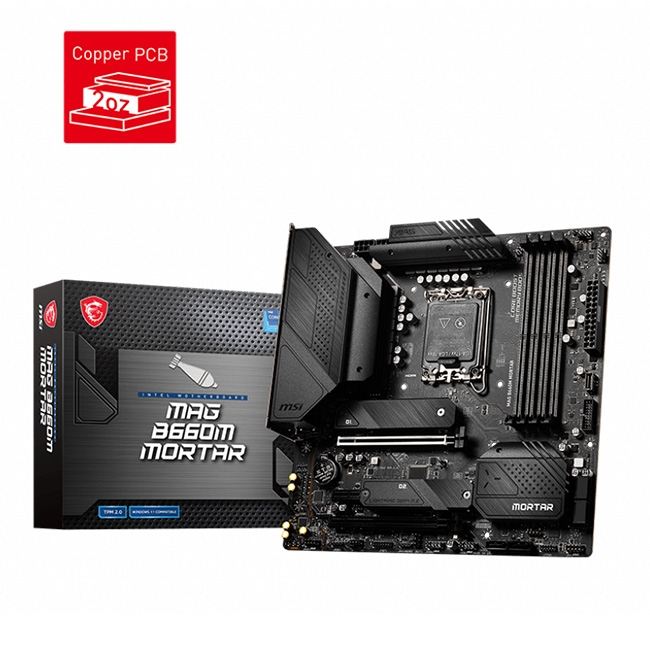

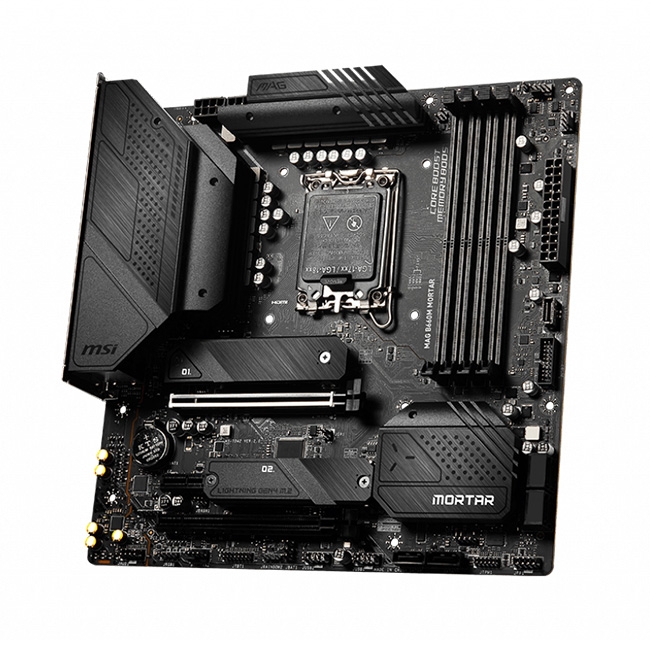

MAG B660M MORTAR

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6200+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire.

Download Driver:

Cam kết hàng chính hãng
Cam kết hàng nguyên tem, nguyên kiện, mới 100%
Bảo hành theo tiêu chuẩn NSX
Giao hàng toàn quốc
Bảo hành nhanh chóng

Hỗ trợ mua hàng:

Mr. Thành Tâm: 093. 891.0559

ZALO: 093.891.0559

Ms. Hồng Trinh: 093.207.0746

ZALO: 093.207.0746

Mr. Minh Trí: 093.855.3309

ZALO: 093.855.3309

Ms. Vân Anh: 093.866.2243

ZALO: 093.866.2243

Mr. Thanh Tùng: 093.909.8182

ZALO: 093.909.8182

Hướng dẫn đặt hàng
Hướng dẫn thanh toán
Chính sách bảo hành đổi trả

Thông số kỹ thuật

Mainboard MSI
PROCESSOR	Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700
CHIPSET	Intel® B660 Chipset
MEMORY	4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: * 1DPC 1R Max speed up to 6200+ MHz * 1DPC 2R Max speed up to 6000+ MHz * 2DPC 1R Max speed up to 5600+ MHz * 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
EXPANSION SLOT	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
ONBOARD GRAPHICS	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
MULTI-GPU	Supports 2-Way AMD® CrossFire™ Technology
STORAGE	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset)1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel® B660 Chipset: 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590: 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G: 4x USB 2.0 ports available through internal connectors
AUDIO	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® 8125BG 2.5Gbps LAN controller
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED FEATURE	4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors

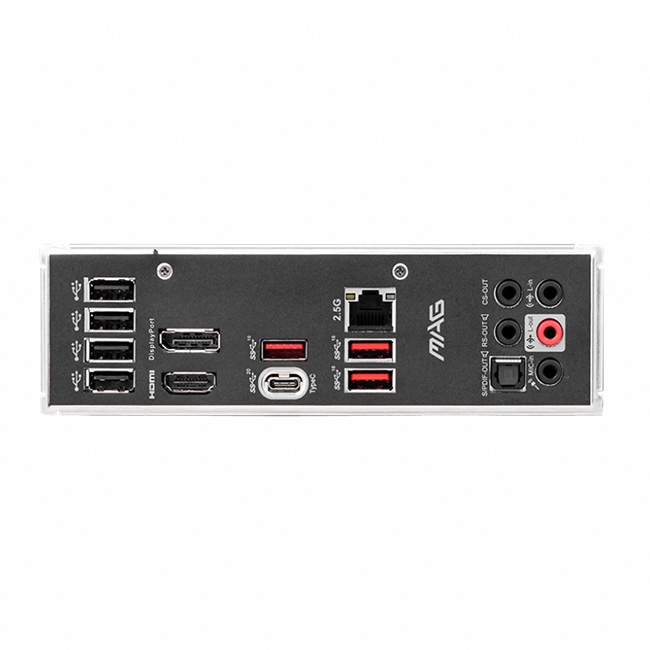

BACK PANEL PORTS	USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
DIMENSIONS	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
