| Mainboard MSI | |
|---|---|
| PROCESSOR | Supports 12th Gen Intel Core Processors Processor socket LGA1700 |
| CHIPSET | Intel® B660 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: * 1DPC 1R Max speed up to 5333+ MHz * 1DPC 2R Max speed up to 4000+ MHz * 2DPC 1R Max speed up to 4000+ MHz * 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel® Extreme Memory Profile (XMP) |
| EXPANSION SLOT | 2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset) |
| ONBOARD GRAPHICS | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 |
| MULTI-GPU | Supports AMD® CrossFire™ Technology |
| STORAGE | 4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (supports RTD3) 1x Serial port 1x Clear CMOS jumper |
| LED FEATURE | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

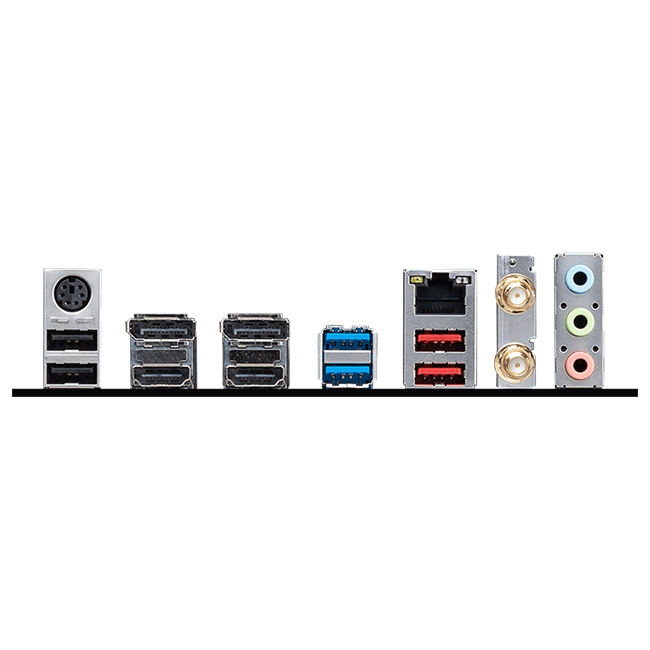

| BACK PANEL PORTS | Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Wi-Fi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
| DIMENSIONS | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |

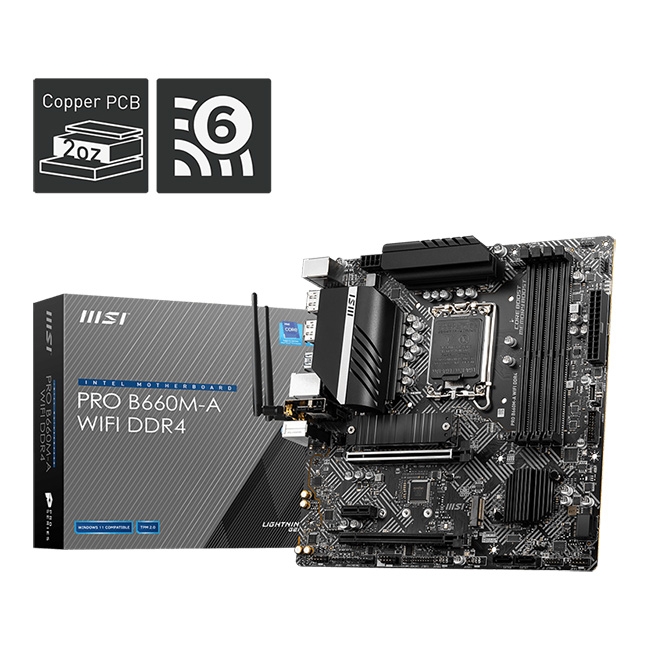

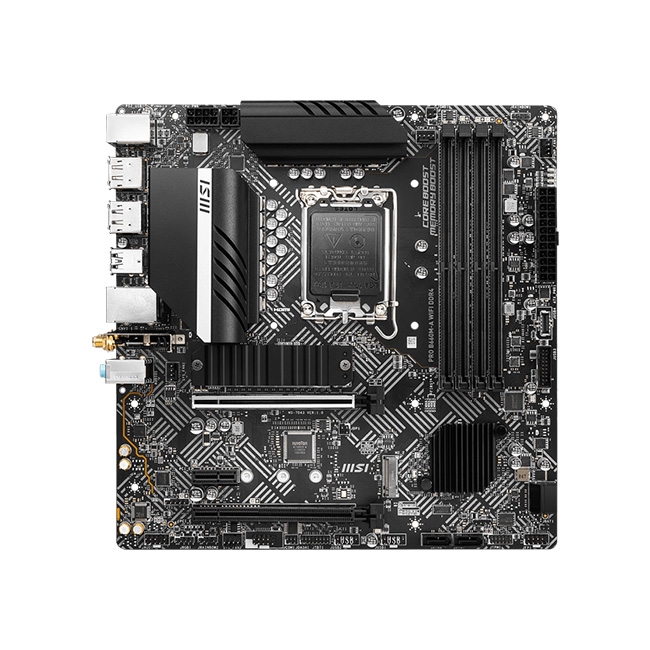

Mainboard MSI PRO B660M-A WIFI DDR4
- Chưa có đánh giá nào
- 1768 lượt xem
- Mã sản phẩm : PRO B660M-A WIFI DDR4
- Thương hiệu : MSI
- 4.100.000₫ [Đã bao gồm VAT]
- Số lượng
- Liên hệ
PRO B660M-A WIFI DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality.
Download Driver:
