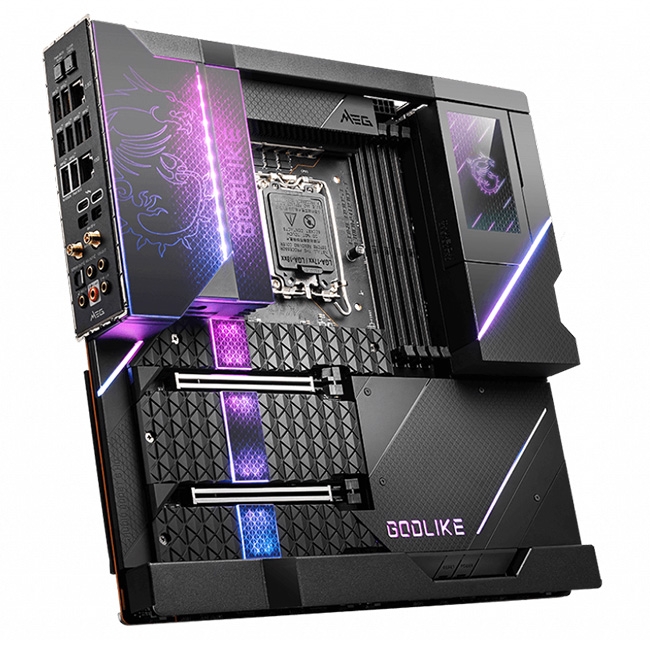

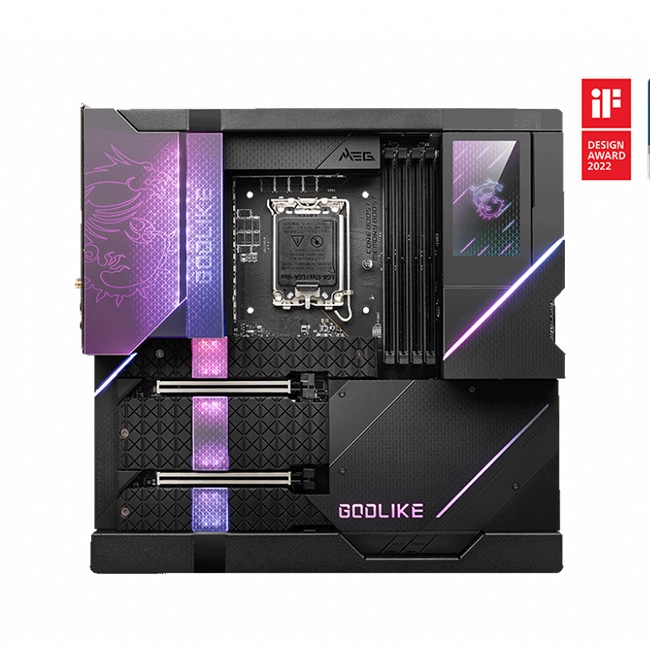

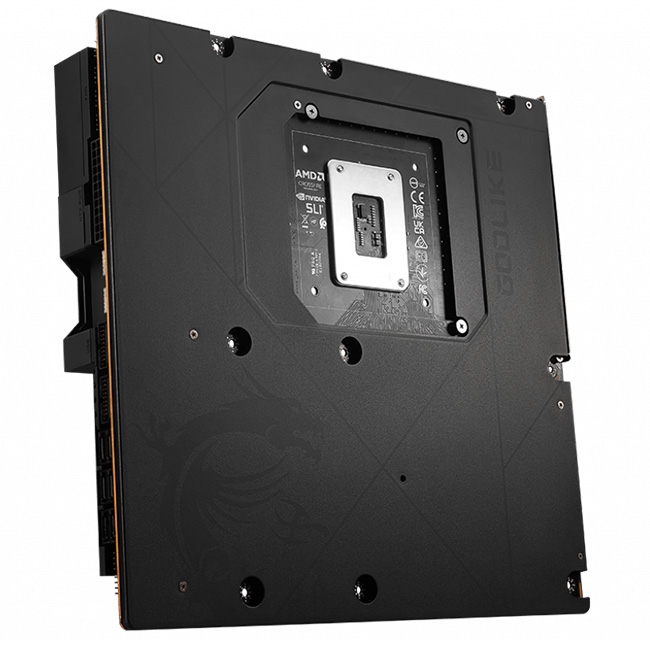

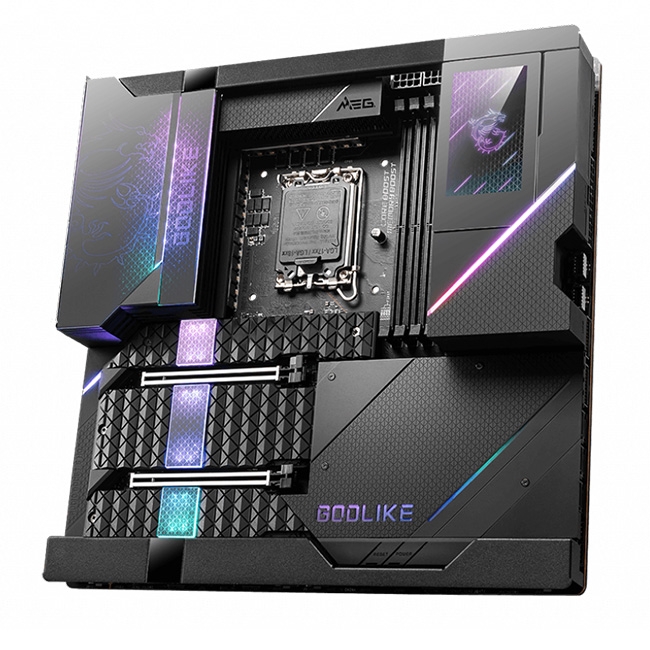

Mainboard MSI MEG Z690 GODLIKE

  • Chưa có đánh giá nào
  • 1245 lượt xem
  • Mã sản phẩm : MEG Z690 GODLIKE
  • Thương hiệu : MSI
  • 52.990.000 [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ

MEG Z690 GODLIKE

  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
  • M-Vision Dashboard: Industry's first built-in touchable LCD on the motherboard, not only indicates the status of your gaming rig, but also allows system tuning with touch control.
  • Extreme Power Design: Direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
  • Premium Thermal Module: Wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr ensure the extreme performance with low temperature.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
  • Full Armor Design: The revolutionary magnetic cover and Chest Plate allow you showing off your PC building without messy cable when installing great amount of devices.

Download Driver:

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN mua hàng:

Mr. Minh Trí:  093.855.3309

Ms. Mai Duyên: 093.143.9459

Mr. Thành Tâm: 093.891.0559

Ms. Hồng Trinh: 093.207.0746

Ms. Vân Anh: 093.866.2243

Mr. Thanh Tùng: 093.909.8182

  • Hướng dẫn đặt hàng
  • Hướng dẫn thanh toán
  • Chính sách bảo hành đổi trả

Thông số kỹ thuật

Mainboard MSI
PROCESSOR Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700
CHIPSET Intel® Z690 Chipset
MEMORY 4x DDR5 memory slots, supporting up to 128GB 1
Supports 1R 5600 MHz (by JEDEC & POR)
Max. overclocking frequency:
* 1DPC 1R Max speed up to 6666+ MHz
* 1DPC 2R Max speed up to 6000+ MHz
* 2DPC 1R Max speed up to 6000+ MHz
* 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
EXPANSION SLOT 3x PCIe x16 slots
Supports x16/x0/x4, x8/x8/x4
PCI_E1 & PCI_E2 slots (From CPU)
PCI_E1 supports up to PCIe 5.0 x16
PCI_E2 supports up to PCIe 5.0 x8 1
PCI_E3 (From Z690 chipset)
▫Supports up to PCIe 4.0 x4
THUNDERBOLT 4 Intel®JHL8540 Thunderbolt™ 4 Controller

2x Thunderbolt™ 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
MULTI-GPU Supports AMD® CrossFire™ Technology
Supports NVIDIA® SLI™ Technology
STORAGE 6x SATA 6Gb/s ports (From Z690 chipset)
SATA5~8 (From Z690 chipset)
SATAA~B (From ASM1061)
6x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From CPU) 2
Supports up to PCIe 5.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_4 slot (From Z690 chipset) 3
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_5 slot (From Z690 chipset) 1
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_6 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
USB Intel® Z690 Chipset
2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors
4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
4x USB 2.0 ports through internal USB connectors
AUDIO Realtek® ALC4082 Codec + ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 1x Aquantia® AQC113CS 10Gbps LAN controller
1x Intel® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2, FIPS, FISMA
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
6x M.2 slots (M-Key)
2x USB 3.2 Gen 2x2 20Gbps Type-C ports
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x Water Flow meter connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1xTPM module connector
1x Tuning Controller connector
LED FEATURE 1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector

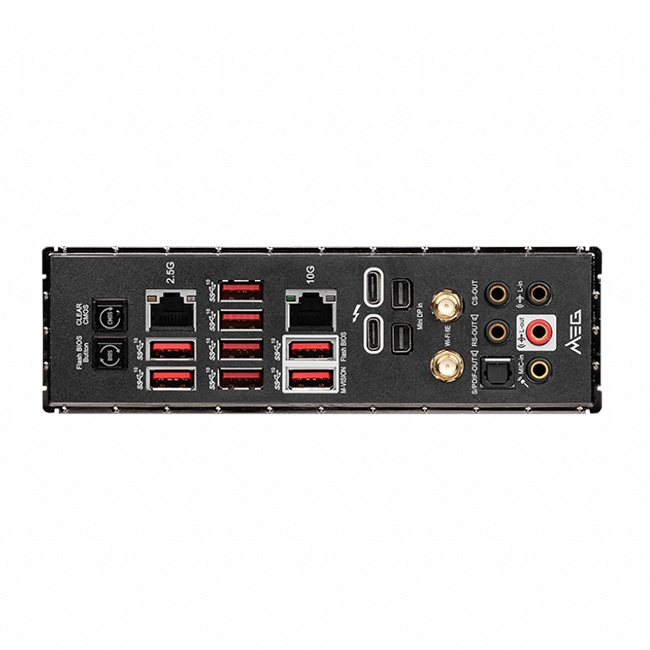

BACK PANEL PORTS Clear CMOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
USB 3.2 Gen2 10Gbps (Type-A)
M-VISION Dashboard Port
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
DIMENSIONS 12 in. x 12 in. (30.5 cm x 31.0 cm)
E-ATX Form Factor
MOUNTING 9 mounting holes
