Mainboard MSI PRO B660M-E DDR4

  • Chưa có đánh giá nào
  • 1084 lượt xem
  • Mã sản phẩm : PRO B660M-E DDR4
  • Thương hiệu : MSI
  • 2.750.000 [Đã bao gồm VAT]
  • Giá niêm yết : 2.900.000 -6%
  • Số lượng
  • Liên hệ

PRO B660M-E DDR4

  • Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4600+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Download Driver:download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN mua hàng:

Mr. Minh Trí:  093.855.3309

Ms. Mai Duyên: 093.143.9459

Mr. Thành Tâm: 093.891.0559

Ms. Hồng Trinh: 093.207.0746

Ms. Vân Anh: 093.866.2243

Mr. Thanh Tùng: 093.909.8182

  • Hướng dẫn đặt hàng
  • Hướng dẫn thanh toán
  • Chính sách bảo hành đổi trả

Thông số kỹ thuật

Mainboard MSI
PROCESSOR Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1
Processor socket LGA1700
CHIPSET Intel B660 Chipset
MEMORY 2x DDR4 memory slots, support up to 64GB 1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
* 1DPC 1R Max speed up to 4600+ MHz
* 1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT 1x PCIe x16 slot (From CPU)
* Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From B660 chipset)
* Supports PCIe 3.0 x1
ONBOARD GRAPHICS 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
STORAGE 4x SATA 6Gb/s ports (From B660chipset)
1x M.2 slot (Key M, from B660 chipset) 1
* Supports up to PCIe 3.0 x4
* Supports up to SATA 6Gb/s
* Supports 2242/ 2260/ 2280 storage devices
* Support Intel® Optane™ Memory
* Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Intel® B660 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO Realtek® ALC892/ ALC897 Codec:
7.1-Channel High Definition Audio
LAN 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper

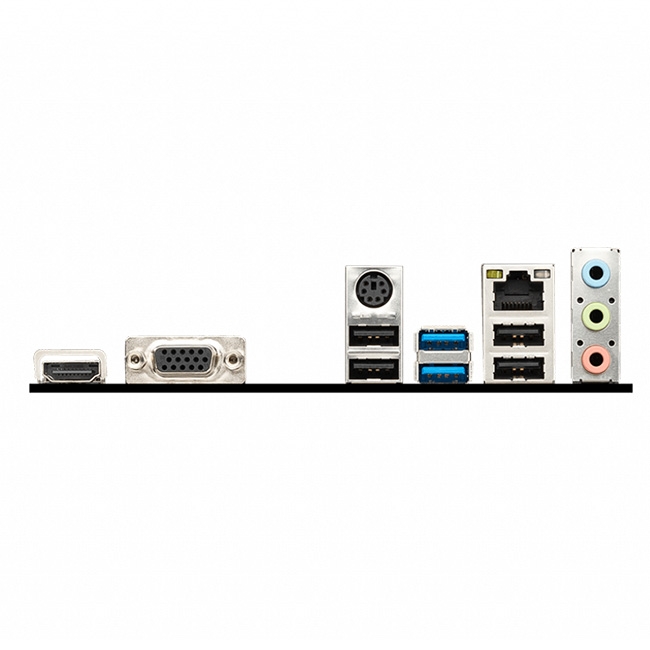

BACK PANEL PORTS HDMI
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
DIMENSIONS M-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
